Military Bunker

Unknown

Get Directions

Gallery

Description

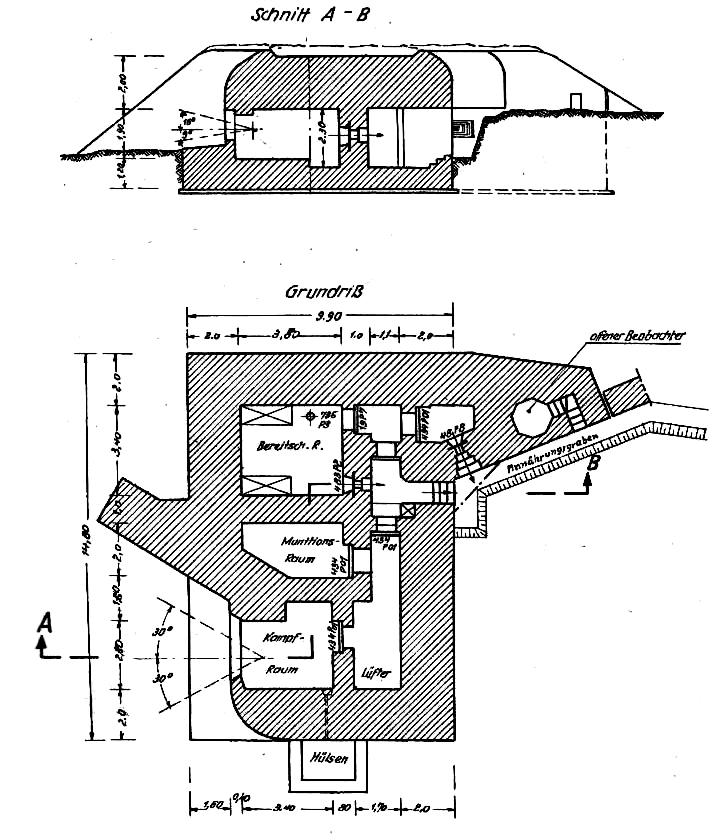

This bunker model belongs to the Regelbauten program. It was built to the strength level of Constantly(St). The model was originally designed for the army. This model belongs to the use group: Flanking cannon stillage.

Specifications

  • Crew Capacity: 6 men
  • Concrete Used: 830 m³
  • Earth Excavated: 580 m³
  • Baustärke (Build Strength): Type B

Remarks

Measurements are without two-piece and flange.

Location on Map

Nearby Locations

OB 2cm Flak Netherlands 0 km away BP 34 - WN 136 H Netherlands 0 km away Vf MG-Stand Netherlands 0 km away 621 Netherlands 0 km away BP 35 - WN 136 H Netherlands 0 km away 501 Netherlands 0 km away 653 Netherlands 0 km away MG-Stellung Netherlands 0 km away KSB Netherlands 0 km away FA Entgiftung Netherlands 0 km away 501 Netherlands 0 km away Bauform 58c "Tobruk" Netherlands 0 km away

Data Sheet

crew 6
armament 5cm KwK
function Casemates for enfilade fire
materials [object Object]
concrete M3 830
dimensions [object Object]
german Name Schartenstand für 5cm KwK
total Built 15
english Name Casemate for 5cm KwK
model Number 653
design Release Q1 1943
wall Thickness B
Sources
regelbau.dk relikte.info
