Map Database 683 (zerst.)

683 (zerst.)

-

Military Bunker

Unknown

Get Directions

Gallery

Description

This bunker model belongs to the Regelbauten program. It was built to the strength level of Constantly(St). The model was originally designed for the army. This model belongs to the use group: Closed gun position with open front.

Specifications

  • Crew Capacity: 0 men
  • Concrete Used: 2000 m³
  • Earth Excavated: 2100 m³
  • Baustärke (Build Strength): Type A

Location on Map

Nearby Locations

OB 15.5cm Geschütz umgebaut auf 21cm France 0 km away OB 15,5cm Geschütz France 0 km away 134 France 0 km away OB 15,5cm Geschütz umgebaut auf 21cm France 0 km away Wasser France 0 km away 622 France 0 km away 683 in Bau France 0 km away 683 (zerst.) France 0 km away OB 15,5cm Geschütz France 0 km away 622 France 0 km away 134 France 0 km away OB 15,5cm Geschütz umgebaut auf 21cm France 0 km away

Data Sheet

crew 0
armament 12,8cm FlaK 40 | 21cm K 39 | 21cm K 39/40 | 21cm K 39/41 | 21cm K 52
function Frontal casements
materials [object Object]
concrete M3 2000
dimensions [object Object]

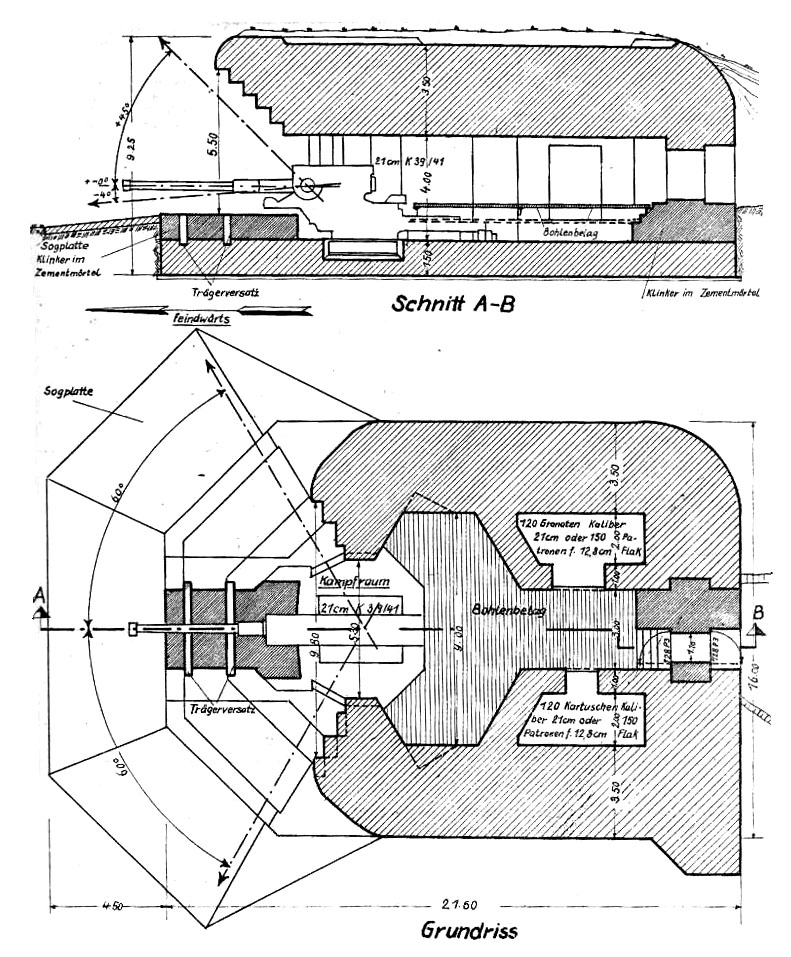

german Name Schartenstand für 21cm Kanone 120°
total Built 6
english Name Casemate for 21cm gun 120°
model Number 683
design Release Q2 1944
wall Thickness A
Sources
regelbau.dk relikte.info
