ДОТ (НП) № 640 КаУР

-

Ammunition Storage

Unknown

Get Directions

Gallery

Description

This bunker model belongs to the Regelbauten program. It was built to the strength level of Constantly(St). The model was originally designed for the army. This model belongs to the use group: Closed gun position with open front.

Specifications

  • Crew Capacity: 6 men
  • Concrete Used: 680 m³
  • Earth Excavated: 800 m³
  • Baustärke (Build Strength): Type B

Remarks

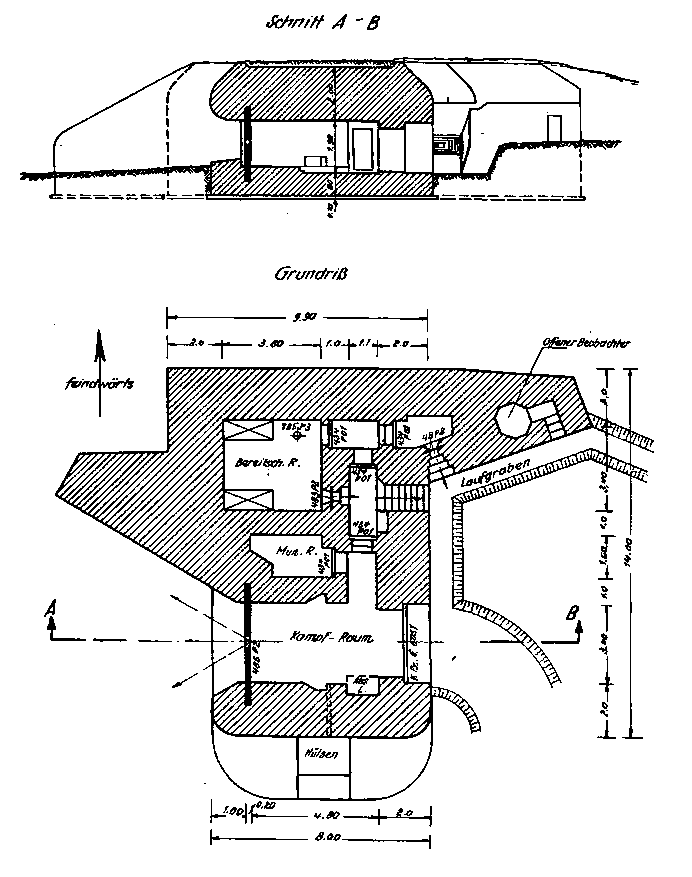

Ammunitionsberegning fra original tegning: Ammunition calculation: Readiness R. 13m² x 2.3 = 29.9 = around 30kg combat R. 17.4m² x 2.3m = 402 = around 40kg Total around 70kg

Location on Map

Nearby Locations

ДОТ № 633 КаУР Russia 0 km away ДОТ № 627 КаУР Russia 0 km away ДОТ № 639 КаУР Russia 1 km away ДОТ № 621 КаУР Russia 1 km away Ложный ДОТ КаУР Russia 1 km away Ложный ДОТ КаУР Russia 1 km away ДОТ № 63 КаУР Russia 1 km away ДОТ № 62 КаУР Russia 1 km away ДОТ № 615 КаУР Russia 2 km away АПК № 011 КаУР Russia 2 km away Малая подземная электростанция КаУР Russia 2 km away ДОТ № 604 КаУР Russia 2 km away

Data Sheet

crew 6
armament 3,7cm Pak | 4,2cm Pak 41 | 4,5cm Pak
function Frontal casements
materials [object Object]
concrete M3 680
dimensions [object Object]
german Name Stand für 3,7/4,2cm Pak mit Panzerplatte
total Built 4
english Name Casemate for 3,7/4,2cm Pak with amoured front plating
model Number 640
design Release Q1 1943
wall Thickness B
Sources
regelbau.dk relikte.info
