Military Bunker

Unknown

Get Directions

Gallery

Description

This bunker model belongs to the Regelbauten program. It was built to the strength level of Constantly(St). The model was originally designed for the army. This model belongs to the use group: Closed gun position with open front.

Specifications

  • Crew Capacity: 0 men
  • Concrete Used: 685 m³
  • Earth Excavated: 900 m³
  • Baustärke (Build Strength): Type B

Location on Map

Nearby Locations

Unnamed Denmark 0 km away Unnamed Denmark 0 km away Unnamed Denmark 0 km away FA Unterstand Denmark 0 km away Unnamed Denmark 0 km away FA Unterstand (zerst.) Denmark 0 km away Unnamed Denmark 0 km away Unnamed Denmark 0 km away BP 64 Stp Stauning Denmark 0 km away Unnamed Denmark 0 km away Unnamed Denmark 0 km away Unnamed Denmark 0 km away

Data Sheet

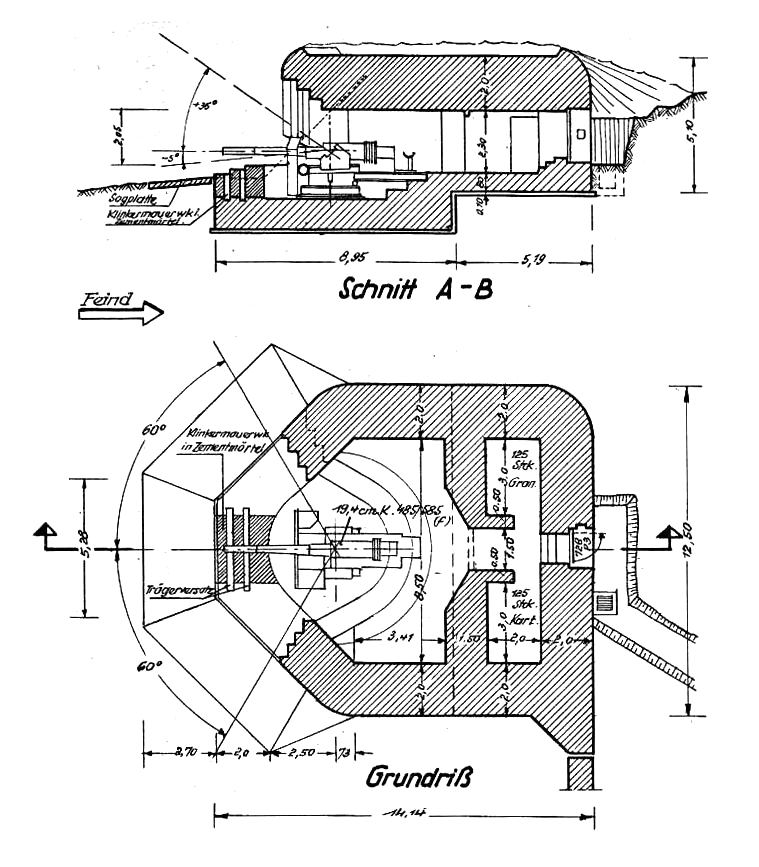

english Name Casemate for 19.4cm 485/585 gun (f) without annexes (120°)
armament 19,4cm 485/585(f)
function Frontal casements
materials [object Object]
concrete M3 685
dimensions [object Object]
german Name Schartenstand für 19,4cm Kanone 485/585 (f) ohne Nebenräume (120°)
total Built 1
model Number 686
design Release Q2 1944
wall Thickness B
Sources
regelbau.dk relikte.info
